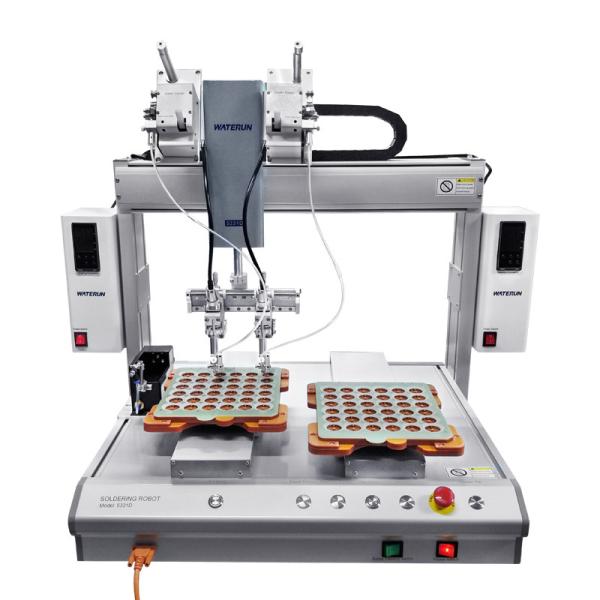

Double Platform Desktop Robot Pcb Automatic Soldering Machine
Description:
We produce automatic soldering machines that meet the demands of applications which are too challenging for hand soldering,manual soldering, even with the most skilled operator, cannot produce the consistent results of a soldering robot. The product has the advantages of reasonable structure,wide adaptability,easy maintenance,easy to use and so on. Welding workers dependence can be completely abolished, customers only in one investment, long-term benefit.Soldering robot machine can complete high speed of spot soldering, line soldering,has parameter copy,automatic correction of coordinate function, greatly shorten the programming time. Suitable for auto electronics,digital,audio,LCD line, PCB line,connector,RJ network transformer.
Specification:
| Model | S5331D |
| Solder Joint Range | X500* Y1/300*Y2/300*Z100mm(XxYxYxZ) |
| Solder Time | 1.0~1.5s/point |
| Repeat Positioning Accuracy | ±0.002mm |
| Solder Wire Diameter | 0.5, 0.6, 0.8, 1.0, 1.2 (mm) |
| Air source | 0.4-0.6 MPA |
| Axis | 5 |
| Program Capacity | 999 files, each file can save up to 999 points |
| External Dimensions(WxDxH) | 820mm x 600mm x 800mm |
| Weight | about 65kgs |
Applications:
Electronic components, PCB, Power Strips, Digital Products, Connectors, Electronic Wires, Led Lighting, LCD Monitor, Display Module, Cell Phone & Accessories.
Product Features:
1. Dual feeding and soldering units doubles the work efficiency to meet the needs of mass production.
2. Applicable for different products, soldering temperature can be set freely.
3. The solddering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.
4. Numerically controlled temperature (static air condition: ±1℃)
5. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.
6. In the soldering process, the solder tip has rapid heat recovery and a long life span.
Company Profile:
We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc. Waterun owns two factories and one business & logistric centor and nearly 100 employees.Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
